RA-20 LT (Light) Elite Frames are built from hydroformed 6061‑T6 aluminum with triple‑butted tubing. Our primary focus is achieving exceptional stiffness with minimal weight. Our engineering team has put in extensive testing to find the perfect balance—so the frame holds its shape under gate starts and explosive efforts on the track.

To push that pursuit of rigidity and lightness even further, Race Inc introduces a first: a RED hard‑anodized finish. This process converts the outer surface into a tough aluminum‑oxide layer, increasing surface hardness and durability without the added weight of paint—delivering a crisp, race‑ready feel with a touch of spectacular beauty.

We believe rigidity is key to top performance, giving a clear advantage over other options on the market. This is—and always has been—a Race Inc strength, ever since the beginning in 1976.

Triple‑Adjustable Dropouts (AAA)

At Race Inc, the dropout has always been one of our key features. We created a unique adjustable system that gives you Triple Adjustability (AAA). Not all tracks are the same, and this feature gives you the adaptation you need: run an extra‑long wheelbase for stability on jumps, or go extra‑short for more agility and easier manuals. You can evolve with your frame.

Integrated disc‑brake dropout adapter

At Race Inc, we believe in simplicity and speed. That’s why we designed our dropout adapter with the disc brake mount integrated. When you change your wheel position, the brake alignment follows—no need to readjust your brake.

All parts are captive and stay together, so changing your rear wheel is nearly as fast as changing your front wheel. No added stress during an event when you need to swap a tire, inner tube, or adjust gearing—everything stays in place and moves with you.

Key Features

• Custom Hydroformed 6061-T6 Aluminum tripel butted tube
• Standard Euro Bottom Bracket Shell
• Tapered Headtube with integrated drop-in Headset (Junior size 1 to 1-1/8in, Pro 1-1/8 to 1.5in)
• Captive 54mm Adjustable Dropout with 2 holes of 10mm (15/20mm Optional)

• Internal rear brake cable routing
• 120mm Disc Brake Post Mount Attached to Dropout Adapter

Frame Includes:

• Headset with RI Top Cap for pro size.
• 10mm Dropout Adapter with 120mm disk mount

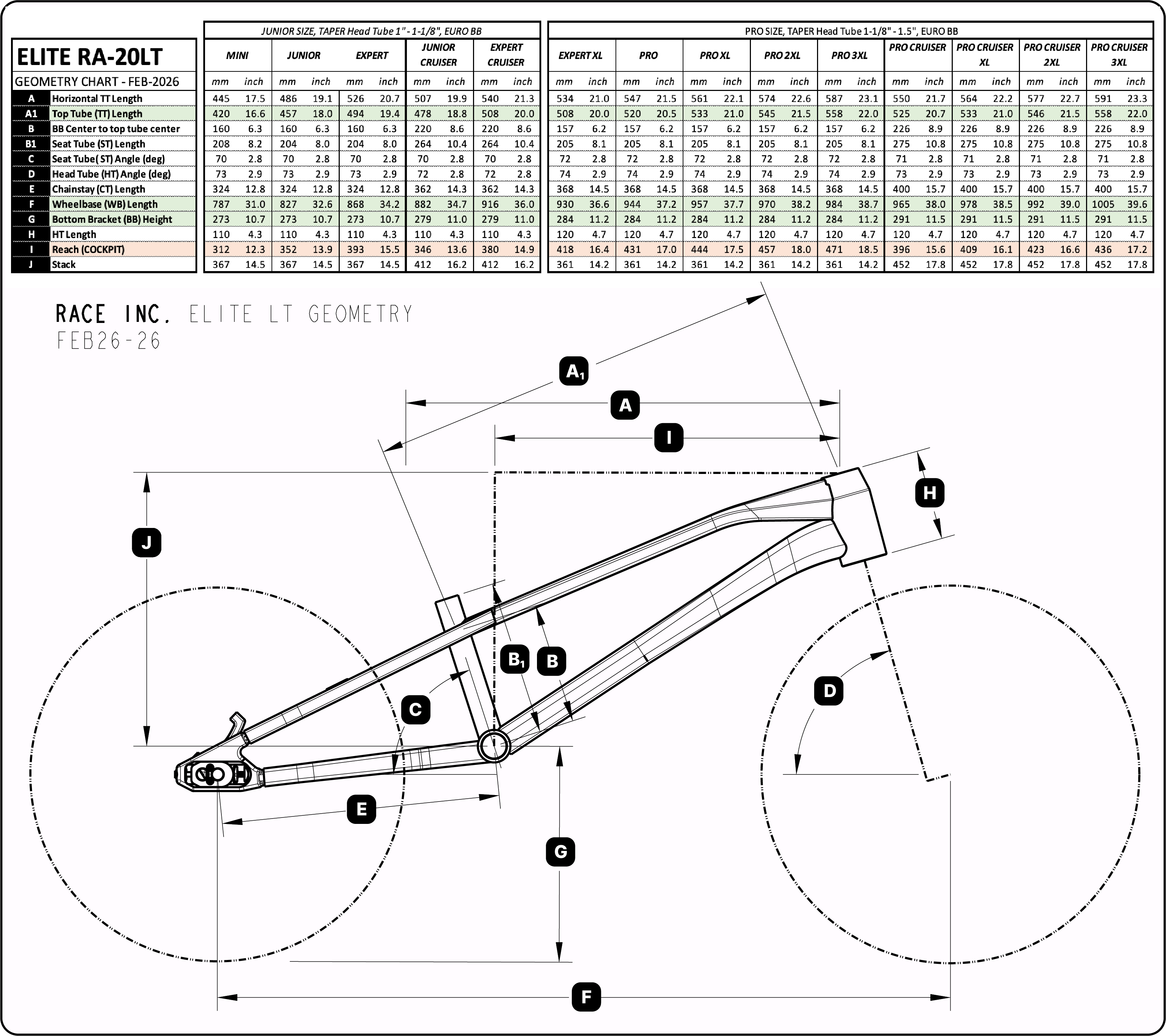

Geometry Chart
