For Box braking we’ve limited the use of our Oversized Technology to the V area since the levers need to be minimalist and largely act as a remote for the V-Brakes. To reduce lateral deflection at the V we chose to enlarge the pivot areas and arms while tightening tolerances at their interfaces. We robbed material from unloaded sections to reinforce these zones of high stress. Not only are you going to be more efficient with brake power delivery, but you’ll also feel the instant response of deceleration.

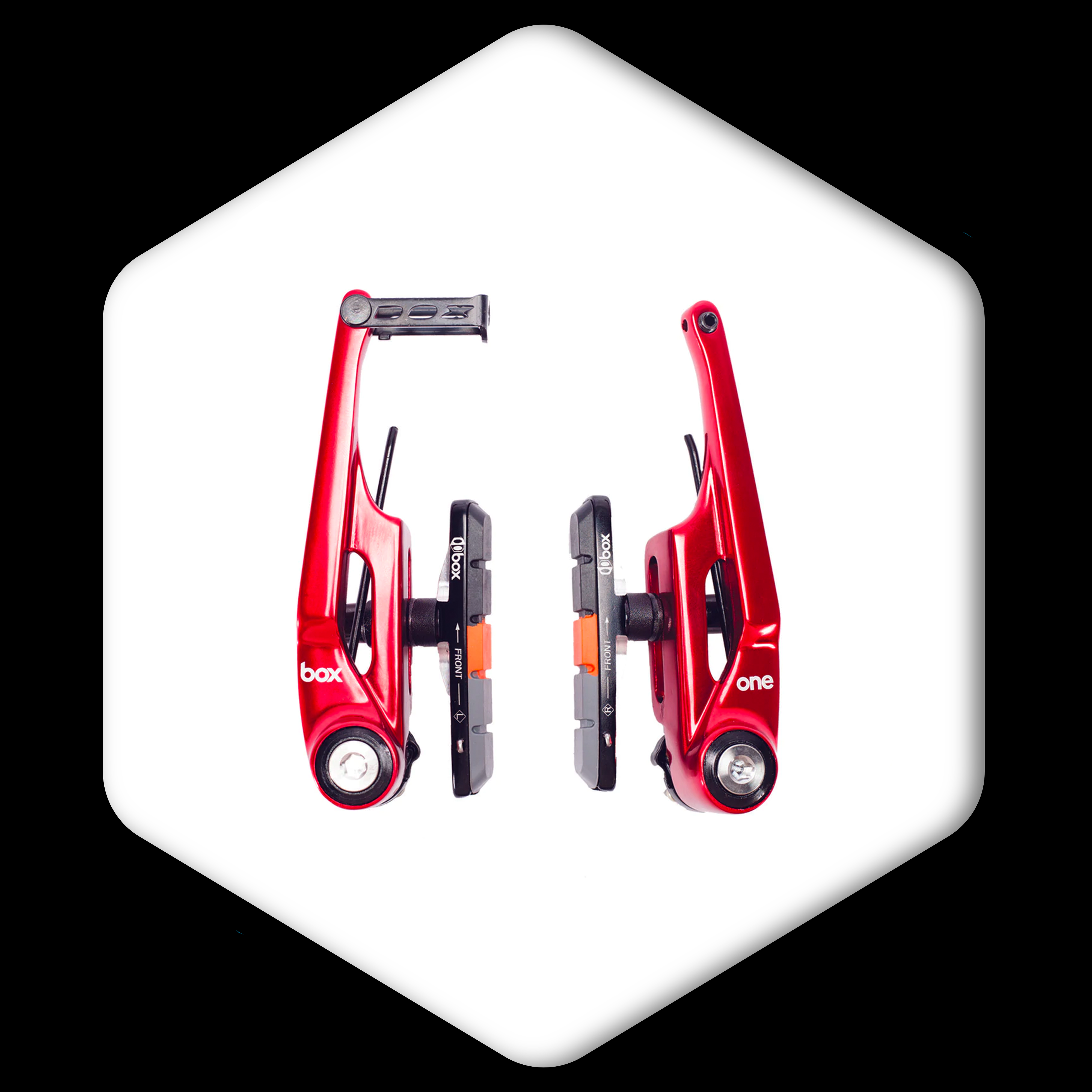

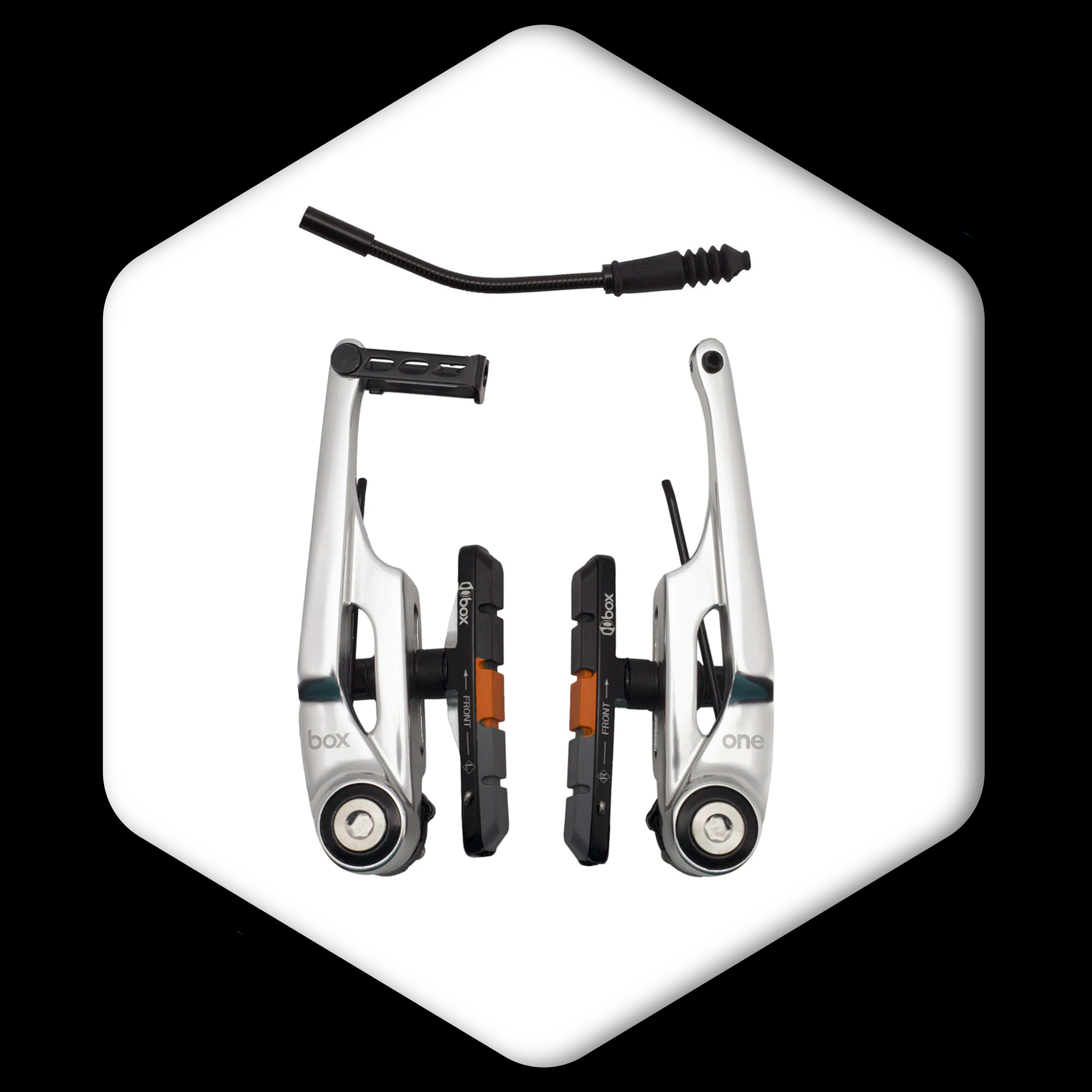

Key differences: The Box One V-Brake are the only brakes in the Box line-up to be blessed with Oversized Technology. They are also the only model to use sealed precision bearings to further reduce non-rotational movement. The 108mm long-reach brakes are excellent for BMX, mountain, city, urban and tandem bicycles using linear-pull-compatible levers. The 85-mm short reach (AKA mini-V) brakes are an excellent choice for cyclocross or drop-bar gravel bikes.
Key Features
Precision sealed bearing pivots
Titanium and stainless steel hardware
Allen key tensions bolt
Inset 2mn allen key to secure cable on right arm
flexible cable noodle
streamlined cable fixing point
Arms are cold forged
35 millimeters of vertical brake pad adjustment
